Bag Closing Machine
Product Details:
- Product Type Bag Closing Machine
- General Use Yes
- Type Other
- Drive Type Electric
- Bag Type PP Bags
- Click to View more
Bag Closing Machine Price And Quantity
- 130000 INR
- 1 Number
Bag Closing Machine Product Specifications
- Other
- PP Bags
- Electric
- Yes
- Bag Closing Machine
Bag Closing Machine Trade Information
- Ahmedabad
- Telegraphic Transfer (T/T) Cash in Advance (CID) Cheque
- Export Packaging (As per suitable in Air,Shipping & Cargo Consignment)
- Australia North America South America Eastern Europe Western Europe Middle East Africa Central America Asia
- All India
Product Description

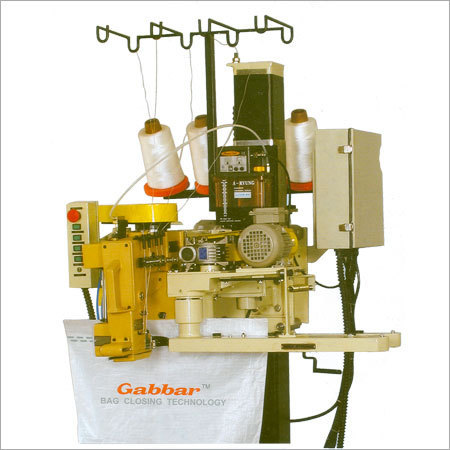

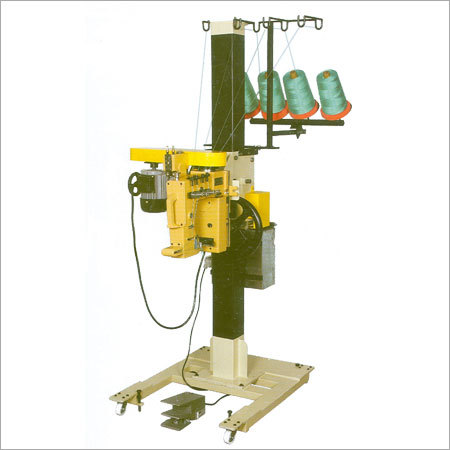

We are famous amongst our customers as a trustworthy manufacturer and supplier of Bag Closing Machine With Conveyor System. It is ideal for using in rice mills, sugar mills, fertilizer plants, agricultural product manufacturing units, flour mills, chemical production plants and others. We manufacture this machine under the strict inspection of expert supervisors using best quality materials and components. This machine is used for stitching and sealing of bags. We offer this Bag Closing Machine With Conveyor System at cost effective prices to clients.Â
Features:
Â
- Speed reduction with the help of gear box
- Heavy duty conveyor for continuous operation
- Low power consumption
Â
Technical Specifications
| Model | AS 800 VM | AS 802 VM |
| No. of Needle | Single | Double |
| Seam | Double Thread Chain Stitch | Four Thread Chain Stitch |
| Speed | 800 - 900 Bags / hr | 800 - 900 Bags / hr |
| Stitch Width | 5 - 9 mm | 5 - 9 mm |
| Needle | DRX2 - 26 (Orgen) | DRX2 - 26 (Orgen) |
| Start/ Stop | Photo- switch | Photo- switch |
| Cutter type | Air cylinder driven guilotine cutter | |
| Air pressure | 6 kg/cm2 | 6 kg/cm2 |
| Air consumption | 250 Lit/min | 250 Lit/min |
| Photo cell range | Upto 500mm | Upto 500mm |
| Infeed system | 0.25 H.P. 3 Phase, 4 pole | |
| Drive motor | For sewing head 0.5 H.P. 3 Phase For conveyor 1 H.P. 3 Phase | For sewing head 0.5 H.P. 3 Phase For conveyor 1 H.P. 3 Phase |
| Conveyor | Slat or belt type | |
| Lubrication System | Auto Lubrication pump | |
| Thread | Cotton or Synthetics | Cotton or Synthetics |
| Conveyor Dimension | 2000 mm. x 390 mm. x 275 mm. | 2000 mm. x 390 mm. x 275 mm. |
| Height Adjustable | 445 - 725 mm | 445 - 725 mm |
| Net Wt. | 325 kgs. | 325 kgs. |
